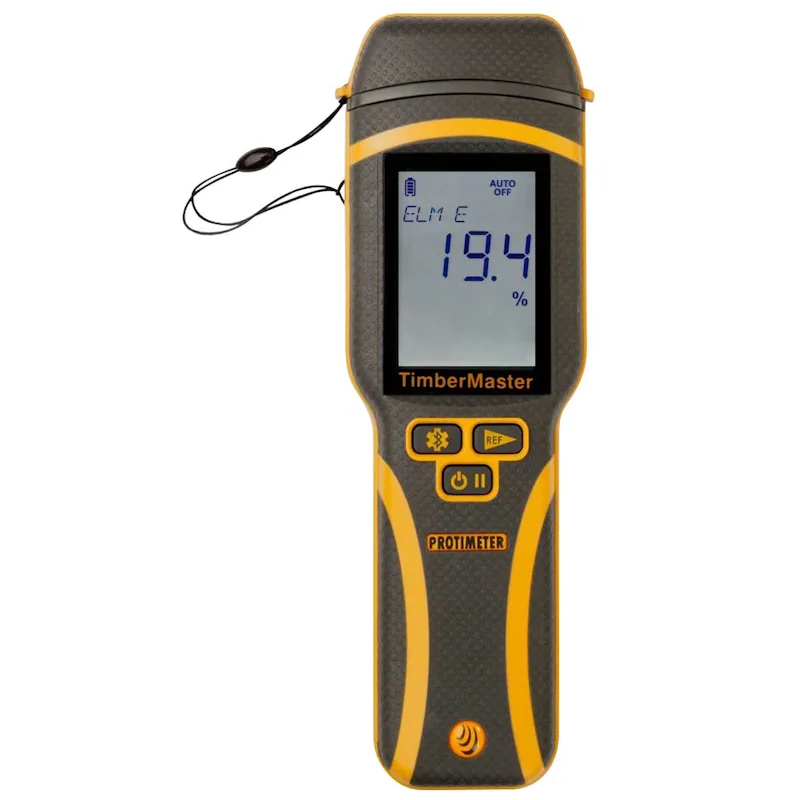

Protimeter TimberMaster 3 BLD5675
Rugged, Bluetooth-enabled moisture meter built for the timber industry — accurate, reliable, and app-assisted.
Features & Benefits
- Compact, handheld design for ease of use in the field
- Large backlit LCD display for clear readings in all lighting
- Bluetooth connectivity to the Protimeter Connect App — record, timestamp, and sync data
- Supports up to 150 wood species calibrations (10 pre-sets stored on device)
- Automatic calibration check (every 50 power cycles) ensures continued accuracy
- Durable, rugged construction suited to demanding environments
- Auxiliary plug for optional Hammer Electrode or temperature probe
Applications & Use Cases
The TimberMaster 3 is ideal for quality control in timber mills, wood product fabrication, flooring subcontractors, restoration works, and on-site inspections. Wherever precise moisture content in wood is required, this instrument provides trusted, repeatable results.
Specifications
| Measurement Type | Pin (conductance) measurement in wood |
| Moisture Range (wood) | 6 % to 99 % MC (values above ~30 % are relative) |
| Needle / Pin Depth | Max 0.4 in (10 mm) for WME pins |
| Wood Species Calibrations | Up to 150 species; 10 pre-sets may be stored in the device |
| Automatic Calibration | Every 50 power cycles |
| Operating Temperature | 0 °C to 50 °C |
| Humidity (non-condensing) | 0 to 90 % RH |
| Power Supply | 3 V (2 × AA batteries) — 2700 mAh typical |
| Dimensions | 195 × 63 × 35 mm (7.7" × 2.5" × 1.4") |
| Weight (gross) | 240 g |
| Regulatory / Compliance | CE, RoHS, ETL, FCC, UKCA, R-NZ |
| Warranty | 2 years (manufacturing defects) |
| Part Number / Model | BLD5675 |

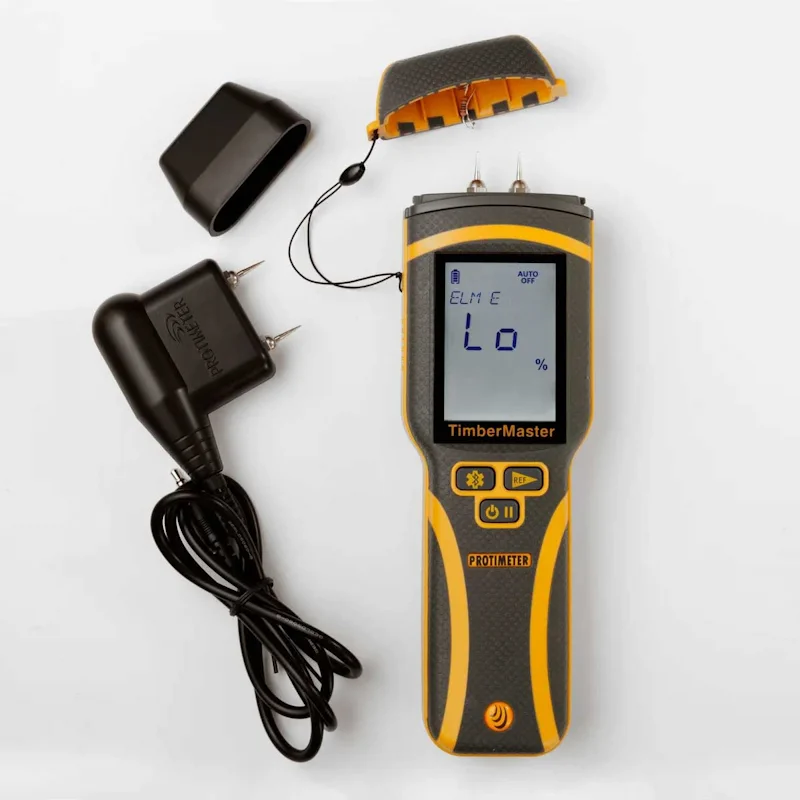

| Included in Kit | TimberMaster 3 unit, heavy duty moisture probe, wood calibration chart, instructions, batteries, carry pouch |
App & Connectivity
The TimberMaster 3 features Bluetooth connectivity to pair with the Protimeter Connect App. Via the app, users can:
- Record moisture readings with time and date stamps
- View, export, and manage data logs and reports
- Select and manage wood species calibrations
- Synchronise readings from meter to mobile device for traceability
Accessories & Options
- Hammer Electrode (optional) — for sub-surface moisture measurement to deeper layers
- Temperature Probe — enables automatic temperature correction when wood temperature differs significantly from 20 °C
- Carrying case, replacement pins, calibration verification kit, etc.
Usage Notes & Considerations
• Measurements above ~30 % moisture content should be considered relative (less absolute accuracy).
• For readings in wood that is significantly warmer or cooler than 20 °C, use the optional temperature probe for automatic compensation.
• The calibration feature ensures long-term stability, but periodic checks with known standards are recommended.
• Replace batteries when voltage drops (two AA cells), and avoid use in conditions outside the specified temperature/humidity ranges.
Why Choose the Protimeter TimberMaster 3?
Whether you're a timber mill, test lab, flooring contractor or restoration specialist, the TimberMaster 3 combines precision, ruggedness, and connectivity. Its industry-trusted accuracy, comprehensive species support, and Bluetooth-enabled workflow make it a standout tool for moisture management in wood.
