Protimeter MMS3 Complete Moisture Measurement System - BLD9800Protimeter MMS3 Complete Moisture Measurement System - BLD9800Protimeter MMS3 Complete Moisture Measurement System - BLD9800
Protimeter MMS3 Complete Moisture Measurement System - BLD9800

Protimeter MMS3 Complete Moisture Measurement System - BLD9800

Product Reference: GE-BLD9800

Price: 786.00 Inc VAT / 655.00 Ex VAT

Choose Package (Price Ex VAT)
Estimated Delivery (working days): 1-2 days

UK Shipping Category: FREE Next Work Day Delivery! (0.00) - UK Mainland


Protimeter MMS3 4-in-1 Complete Moisture Measurement System - With Wireless Capability (BLD9800)

The Protimeter MMS3 represents the latest in moisture measurement technology. Its ergonomic 4-in-1 design allows for fast and accurate full building diagnostics both on and below the surface, from new building construction to refurbishment projects in existing buildings. Also with built-in hygrometric capabilities and an infrared (IR) laser thermometer,  the MMS3 also assesses indoor air quality conditions.

Features

  • Pin moisture measurement with built-in calibration check
  • Improved non-invasive moisture measurement with sensitivity mode feature and simple field calibration
  • Non-contact surface temperature measurement with Infrared (IR) laser pointer
  • Fast Response
  • Manual and automatic data logging up to 10,000 records
  • File viewer mode to view logged data
  • Data reporting and processing through Protimeter PC software
  • Live data stream over Bluetooth, data log into file or embedded into an image in Protimeter app
  • Web interface to view the logged data
  • Easy-to-use interface with colour display and multi-language capability
  • Firmware upgradable

Benefits

  • Fast-responding hygrometer - speeds up building surveys
  • Replaceable humidity and temperature sensor
  • No need to plug in multiple accessories
  • Non-invasive measurement, not adversely affected by surface moisture
  • Highly accurate

Applications

  • Fire and flood restoration
  • Concrete floor moisture measurement
  • Home inspection
  • Building survey
  • Moisture mapping

Packages Available

  • Basic (BLD9800) - MMS3 instrument in canvas pouch, Quikstick ST, HD MC probe, quick start guide
  • Basic Survey Kit (BLD9800-S) - MMS3 instrument in canvas pouch, Quikstick ST, HD MC probe, Hygrostick, Hygro/Quik extension lead, 5 inch deep wall probes, quick start guide

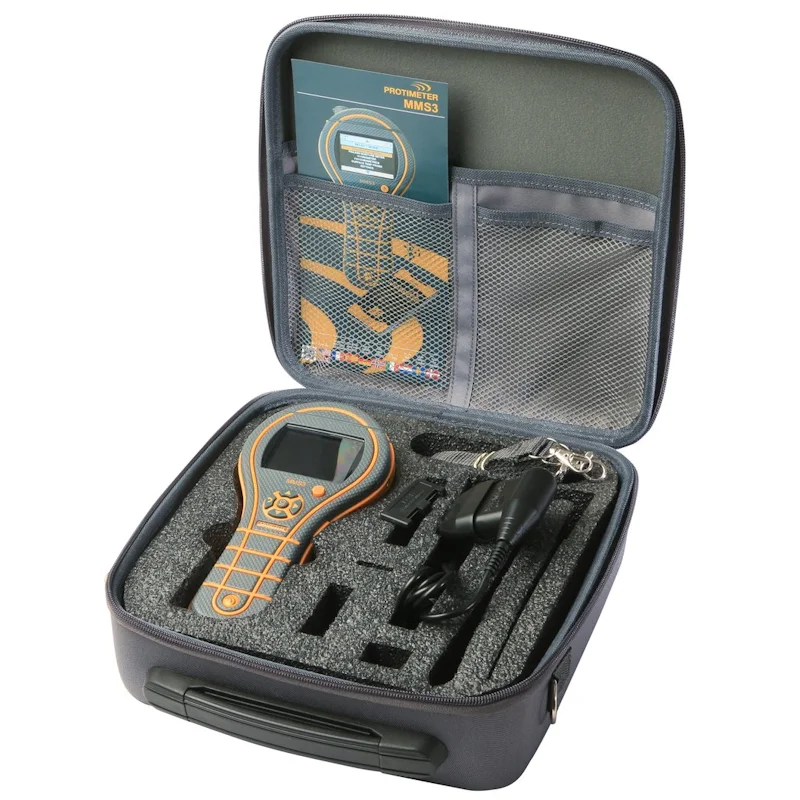

  • Standard Kit (BLD9800-C) - MMS3 instrument in hard carry case, Quikstick ST, HD MC probe, quick start guide
  • Survey Kit (BLD9800-C-S) - MMS3 instrument in hard carry case, Quikstick ST, HD MC probe, Hygrostick, Hygro/Quik extension lead, 5 inch deep wall probes, surface temperature sensor, quick start guide
  • Restoration Kit (BLD9800-C-R) - MMS3 instrument in hard carry case, Quikstick ST, HD MC probe, HD hammer electrode, 4x hammer pins, 5 inch deep wall probes, surface temperature sensor, quick start guide

Specification

Gross Weight

Instrument only (with batteries): 10.9oz (309g)

Regulatory Compliance

CE RoHS  ETL  UKCA

Plug-In Surface Temperature Probe

BLD5806:
Range: 32°F to 158°F (0°C to 70°C)
Accuracy: ±1.3°F (±0.7°C) @ 77°F (±25°C)

Display

2.4" TFT Color LCD
320x240 Resolution
Backlight with adjustable brightness
Outdoor Mode

Batteries (Included) 2xAA Alkaline Batteries ~ 2700mAH
Warranty

Standard Limited Warranty for 24 months on mechanical or manufacturing defects. Does not include wear and tear on parts or accessories, which have a 12 month warranty for normal use

Moisture Measurement Range

Pin (% WME): 6% to 100% (Readings over 30% are relative)

Non-Invasive (RF): 60 to 999 Relative, up to 3/4" (19mm) deep in standard mode, and up to 5" (12cm) deep in sensitivity mode  (varies with material under test)
IR Surface Temperature Probe Range

LASER Pointer: 12:1 (D:S) Ratio
Range: -4°F to 176°F (-20°C to 80°C)
Accuracy ±3.6°F (±2°C)

Hygrostick Data (Nominal)  30% t 40% RH (±3% RH) at 68°F (20°C) 41% to 98% RH (±2%) at 68°F (20°C). Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C)
Quickstick Data (Nominal)

0% to 10% RH, ±3% RH at 68°F (20°C), 10 to 90% RH, ±2% RH at 68°F (20°C), Range 32°F to 122°F (0°C to 50°C) ±0.6%°F (±0.3°C)  Nominal response 30% to 90%

Data Storage

Manual and Automatic Logging: Store up to 10,000 results in the device with date and timestamp from all instrument functions.


Store results of interest in "the cloud" from live data on the Protimeter app into a file or embed into an image to be accessed through phone/tablet and/or web interface.


Condition: New
Brand: Protimeter
Manufacturer's Part Number: BLD9800
Availability: InStock
Price Inc VAT: GBP 786

UK Shipping Category: FREE Next Work Day Delivery! (0.00) - UK Mainland
Weight (largest size, packaged): 1.20kg

"No hassle" 14 day returns policy - providing the item has not been used.
