Rubi TC 125 KIT Circular Electric Tile Saw & Rails - 110v

Rubi TC 125 KIT - Circular Electric Tile Saw With Rails - 110v

Features

• Circular electric tile cutter with a smooth and precise finish. Ideal for cutting large ceramic tiles, natural and sintered stone.
• Equipped with carbon steel slide-on adjustable stainless steel radial bearings.
• Double dust reduction/control system. Dry and wet cutting.
• Height-adjustable cutting head (saw effect), hinged from 0° to 45° (mitre). Fast adjustment system.
• More ergonomic. Additional bi-material handle, mainly for mitre cuts.
• Compatible with diamond blades of 125mm or 115mm diameter (TVA type with reinforced plate).
• Switch with safety lock - prevents unintentional start-up. Electrical cable with PRCD.
• Direct connection to Rubi AS-30 PRO dust extractor (available separately, 32mm diameter connector). Includes adaptor for other models and brands (37, 42 and 50mm diameter).
• Quick connection and regulating valve for hose (16mm diameter). Rubber stopper for suction outlet. Improves ergonomics during wet cutting.
• Cast aluminium disc protector with transparent polycarbonate cover. With quick opening and closing system. Facilitates disc changes and minimises the projection of particles and water.
• Tilting side guard for mitre cuts - reduces water splashing and improves dust suction.

Specification

• Max cutting length - 320cm (126")
• Cutting height - 20-25mm (13/16" - 1")
• Mitre cutting thickness - 14-18mm (9/16" - 11/16")
• Power supply - 110v 50Hz UK
• Motor - 1,250W
• Revolutions per minute - 13,800
• Outside diameter of blade - 115-125mm (4 1/2" - 5")
• Bore size - 22.2mm (7/8")
• Length x width x height - 330 x 239 x 206cm (129 15/16" x 94 1/8" x 81 1/8")
• Net weight without packaging - 14kg (31lb)

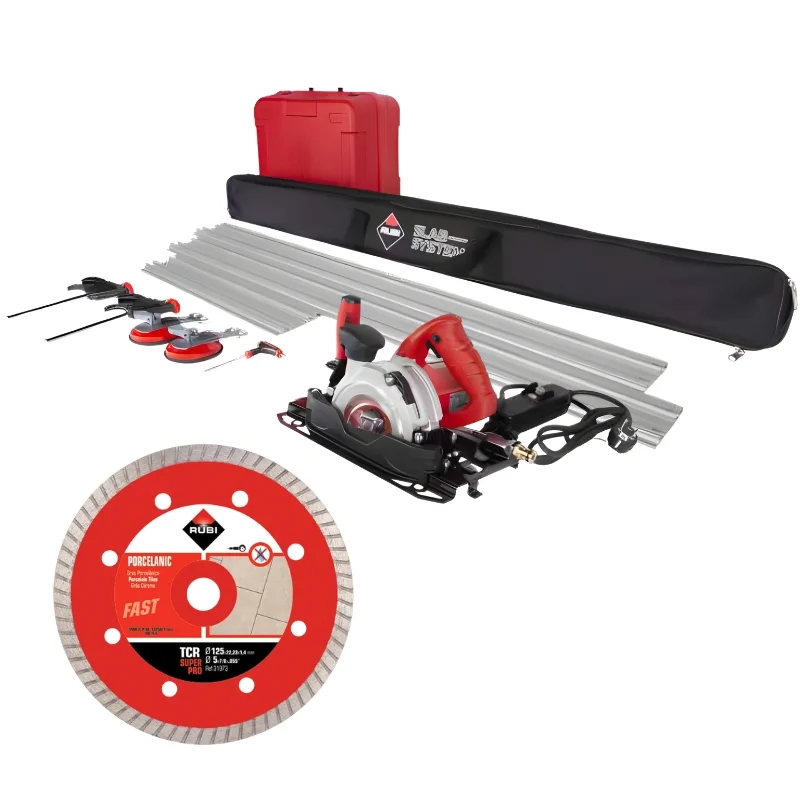

Included Items

• Rubi TCR-125 Super Pro diamond blade (for dry cutting)
• Slim guide rails (320cm)
• 2 suction cups
• Dust extractor adaptor
• Additional handle
• Carry bag for Slim guides
• Hard carry case for TC-125
• 3 year warranty - extended to 4 years for Rubi Club members (free membership at Rubi.com).
